StructurALL®

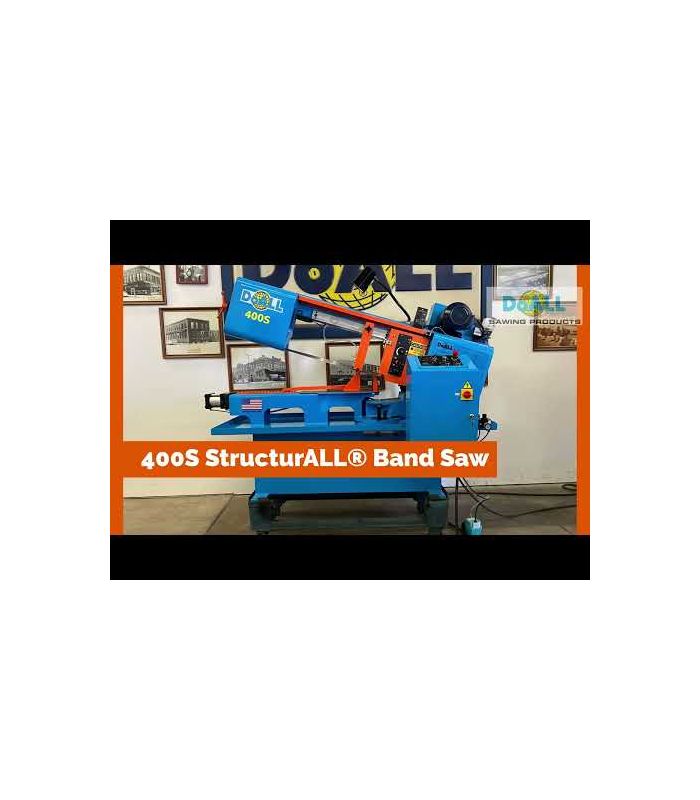

400S Structural Band Saw

Machine Capacity: w 16″ x h 10″ (406mm x 254mm)
Round Capacity Tube: 10.75″ (273mm)
Production Level: Low

Standard Features: Fixed Control Console, Variable Frequency Drive, Swivel Head to 45 degrees, Fine Adjustment Head Feed Control, Rapid Head Down Approach and more!

The 400S is an introductory machine in the StructurALL family of band saws and is suited for cutting all types of structural materials. Swiveling 45 degrees, it's the ideal machine for the small to medium fabricator or machine shop, looking to make extremely accurate (straight or miter) cuts in smaller quantities. The 400S features a 9" high x 16" wide capacity of rectangles and 10-3/4" rounds, at 0 degrees. This manual machine can be equipped with a variety of options to further ease operation, such as pneumatic head-lift and pneumatic vise attachments.

We’re proud to produce the DoALL 400S at our corporate headquarters in Minnesota. Each machine is hand-assembled by our local team and features high-durability plate steel and TIG welds.

The top 3 new features as follows:

Feature #1- Fixed Control Console

The moveable pedestal was upgraded to a fixed control console.

Feature #2- Variable Frequency Drive

The variable pulley was replaced with VFD. The band motor size increased from 2 Hp to 3 Hp increasing torque to the blade.

Feature #3- Increased Band Drive Speed

Band drive speed is now 50 fpm to 400 fpm to cover a wide range of materials from inconel to aluminum.

The 400S can be equipped with a variety of options to further ease of operations such as a work light, laser line generator, band mist lubricator, and more!

SHOP DOALL ONLINE
SKU 1008780
Share:

The 400S Structural Bandsaw from DoALL Saw Products is a versatile metal cutting saw ideal for small to medium-sized shops. Part of our StructurALL® collection, this horizontal metal cutting saw promises accurate straight and miter cuts every time. If you're a fabricator searching for the perfect machine for precise cuts in smaller quantities, the DoALL 400s are what you need.

This manual bandsaw machine can cut up to 16-inch (406 millimeters) high by 10-inch (254 millimeters) wide rectangles and 10.75-inch (273 millimeters) round tubes. You can equip the bandsaw with add-ons such as a pneumatic head-lift or vise attachments.

We’re proud to produce the DoALL 400S at our corporate headquarters in Minnesota. Each machine is hand-assembled by our local team and features high-durability plate steel and TIG welds.

Standard Features

The 400S is a structural bandsaw that's suitable for low production levels typical for small to medium-sized machine shops. The standard features in this model include:

  • Fixed Control Console: Ergonomically placed control console for ease of operation and safety of the operator.
  • Variable Frequency Band Drive: The Variable Frequency Band DManual Blade Tensionrive allows the operator to dial in their band speed to fine tune cutting performance supplying maxiumum torque to the tooth tips of the saw band.
  • Rapid head down w/ Feed Control: Three position head control allows the operator in rapid mode to quickly position the saw head above the material, the head will stop at position in the hold mode, and create feed rates with the micrometer adjustment in the feed mode for maximizing cutting performance.
  • Coolant Thru Carbide Faced Saw Guide Inserts: Supplies coolant to the blade evenly before the cut creating straighter cuts and allowing longer blade life due to coolant being supplied at the tooth tip.
  • Band Wheels: Time honored rack and pawl vice system using an acme thread screw minimizes setup / clamping time aiding in increased production and decreased vise maintenance.
  • Manual Blade Tension: Positive stop to prevent possible error of over/under tightening the band for maximum cutting rates and band life.
  • Band Brush: Gear driven band brush removes the chips from the blade
    gullets which would prevent the blade from attaining maximum cutting rates and blade life.
  • Counter Balance Spring: Counterbalance spring maintains constant head weight throughout the cut keeping the blade tooth load equal aiding in maximum blade life.

Request a Quote Today

Request a quote for our 400S Structural Bandsaw online or contact us on our website with any questions. A member of our experienced team will be on hand to provide you with all of the information your need.

Standard equipment for the 400S includes:

  • Swivel head to 45 degrees
  • Fine adjustment head feed control
  • Fixed control console
  • Rapid head down approach
  • Spring loaded, zero clearance, coolant through, carbide faced saw guide inserts
  • Quick action rack and pawl vise system w/Acme Thread
  • Gear driven band cleaning brushes
  • Variable Frequency Drive
  • Heavy duty counter balance spring
  • Flange backing band wheels
  • Manual band tension
  • Recirculating coolant system
  • Discharge tray
  • Replaceable steel wear plates on bed
  • Saw blade guards
  • Band door interlocks
  • Operation and parts manuals on USB stick
  • Recommended band speed chart
  • One (1) complimentary DoALL Bi Metal saw blade
  • Complimentary DoALL Cutting Fluids package

Details:

  • Fixed Control Console - Ergonomically placed control console for ease of operation and safety of the operator.
  • Variable Frequency Band Drive-The Variable Frequency Band Drive allows the operator to dial in their band speed to fine-tune cutting performance supplying maximum torque to the tooth tips of the saw band.
  • Rapid head down w/ Feed Control-Three position head control allows the operator in rapid mode to quickly position the saw head above the material, the head will stop at position in the hold mode, and create feed rates with the micrometer adjustment in the feed mode for maximizing cutting performance.
  • Coolant Thru Carbide Faced Saw Guide Inserts-Supplies coolant to the blade evenly before the cut creating straighter cuts and allowing longer blade life due to coolant being supplied at the tooth tip.
  • Band Wheels-Flange cast steel wheels insure band tracking to prevent tooth set loss.
  • Rack and Pawl Vise-Time honored rack and pawl vice system using an acme thread screw minimizes setup / clamping time aiding in increased production and decreased vise maintenance.
  • Manual Blade Tension-Positive stop to prevent possible error of over/under tightening the band for maximum cutting rates and band life.
  • Band Brush-Gear driven band brush removes the chips from the blade
    gullets which would prevent the blade from attaining maximum cutting rates and blade life.
  • Counter Balance Spring-Counterbalance spring maintains constant head weight thru out the cut keeping the blade tooth load equal aiding in maximum blade life.
  • Warranty - One-year parts only, subject to terms & conditions. 10-year DoALL Cut Above Warranty available.

Saw Blade:

  • Width x Length - 1" x 158"

Band Drive:

  • Motor HP - 2 Hp VFD
  • Band Speed - 50-400 fpm
  • Band Tension – Manual

Hydraulic System:

  • Motor Hp - N/A
  • Reservoir Size N/A

Coolant System: Flood Yes / Mist Lubricator OPT

  • Motor Hp - 1/15 Hp
  • Reservoir Size 6 Gallon

Floor Space Dimensions:

  • W x L X H - 87" x 42" x 55"
  • Material Pass Height - 29"
  • Machine Weight - 1,200 lbs.

Electrical:

  • Voltage Requirement 208V,230V or 460V-60Hz-3ph,  Wye configuration (Must Specify at Order Placement)
  • Total Amp Draw (FLA) 7.2(208)  6.9(230)  3.5(460)Amps

Optional Accessories:

  • Full Cycle attachment provides pneumatic head raise/vise operations allowing for head raise to a pre-determined height after the cut in auto mode. Pneumatic operations remain active in manual mode.
  • 5 ft Medium-duty idler conveyor 16" between frames. Roller capacity 850 Ibs.
  • 10 ft Medium-duty idler conveyor 16" between frames. Roller capacity 850 Ibs.
  • Additional conveyor rollers
  • 24" Discharge table
  • 18" Adjustable work stop - Requires item 1009399
  • Band mist lubricator
  • Work light
  • Laser line generator
  • Flushing hose attachment
  • Additional USB stick of manuals
  • A Nationally Recognized Testing Laboratory (NRTL) is an independent third-part laboratory recognized by the United States Occupational Safety and Health Administration (OSHA) to test and certify products to applicable product safety standards
  • Four (4) hours installation and operator training
  • DoALL Cut Above 10 Year Warranty Annual Investment
