Hercules™

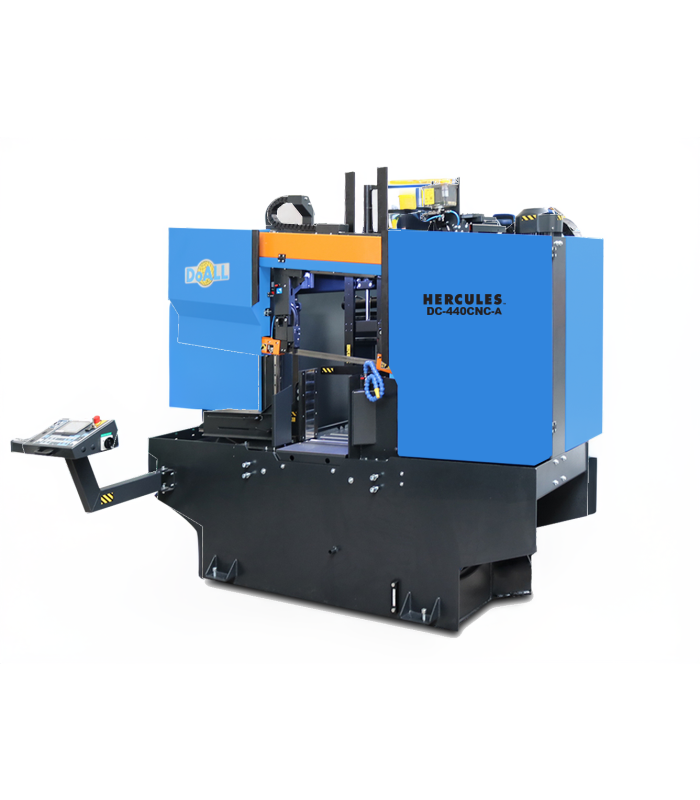

DC-440CNC-A - Dual Column Enclosed CNC Band Saw
Machine Capacity: w 18" x h 16"
Machine Capacity Round: Tube or Solid - 17.25"
Production Level: Extreme
Standard Features: Variable Vise Pressure, Fully-Automatic Digital Control and Automatic Material Retraction
The DC-440CNC-A Hercules™ offers fully-automatic operations which improve the performance of your production. All machine operations are hydraulically controlled, including indexing and feed. .
The DoALL Hercules™ line is fully enclosed to improve the safety in your facility.
SKU
DC-440CNC-A - Dual Column Enclosed CNC Band Saw
Machine Details & Specs:
- Cutting capacity for tube - Round: 17.25", Rectangle: 18" x 16"
- Cutting capacity for solid - Round: 17.25"
- Maximum nesting capacity – 18" x 16"
- Band saw blade dimensions - Width: 1 1/4” x 3/64", Length: 211"
- Band speed - 50-400 fpm
- Band drive motor - 7.3 HP
- Coolant pump and capacity - 0.25 HP, 10 gal
- Material pass line height - 31.5"
- Machine weight – 6,340 lbs
- Dimensions W x L X H – 130" x 80" x 86"
- Machine Voltage - 460vac, 3-Phase, 60hz, Wye configuration required
Optional Accessories:
- Blade deviation monitor
- Signal beacon dispplaying machine status
- Edge finder
- Chip conveyor extension for 55 gal drum
- Top clamp nesting fixture
- Synchronization of saw feeder to power conveyor
- Laser line
- Set of wear parts (inserts, brush, bearings, plates)
- 78 inch robust idler conveyor 24" between frames roller capacity 3,750 lbs
- Vertical fix roller mounted on idler conveyor (one per section)
- Adjustable vertical fix roller mounted on idler conveyor (one per section)
- Hydraulic shift for adjustable vertical fix roller mounted on idler conveyor (one per section)
- 78" input or output with chain drivel rollers via RDMS/RDM
- 78" input or output robust conveyor with chain drivel rollers. Connecting to 540-RDM
- Start-up kit - includes 6 genuine DoALL blades, Vernier caliper, refractometer, heavy-duty work gloves, work apron, safety glasses, squeegee, magnetic wand chip remover and ball cap
- DoALL Cut Above 10 Year Warranty
