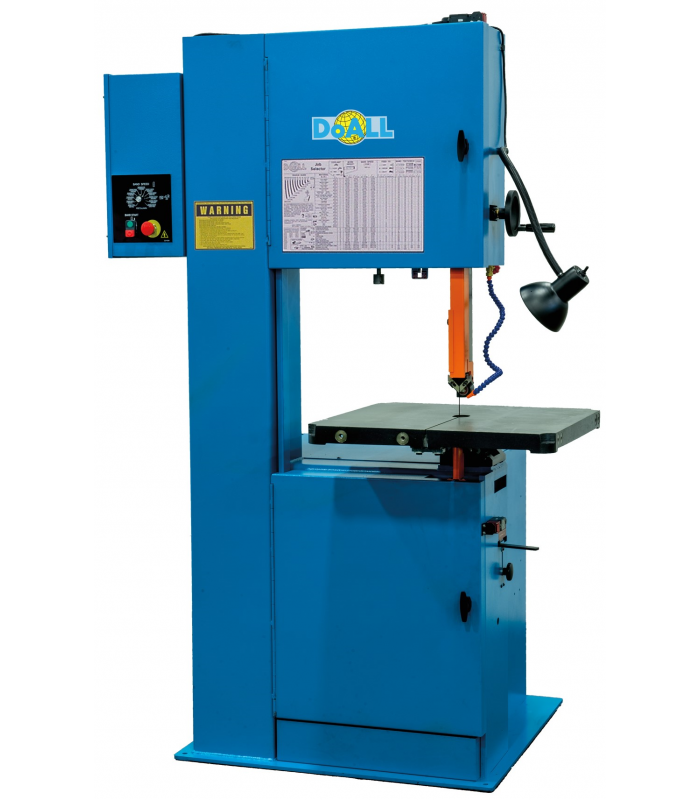

2013-V3 Vertical Contour Band Saw

Machine Capacity: w 20″ x w 13″ (508mm x 330mm)
Production Level: Low

Standard features: Work Light, Chip Blower, Tilt Table and Post Elevating Hand Wheel

The DoALL 2013-V3 vertical contour band saw comes standard with a 3 Hp variable frequency drive motor and a w 20" x w 13" (508mm x 330mm) tilting table for added flexibility.

Fabrication shops, automotive shops, metalworkers and applications requiring the ability to perform contoured cuts on a wide variety of materials choose DoALL 2013-Series vertical band saws to get the job done. They are tough and dependable, with a service life of well over 10 years (when properly maintained).

The DoALL 2013-V3 can be customized to meet your specific needs, with features such as an air glide table for seamless cuts and blade welders to quickly size and mend band saw blades.

SHOP DOALL ONLINE
SKU 290184
Share:

Standard equipment and features for your new 2013-V3 Vertical Countour Band Saw:

  • Table tilt to 45 degrees negative - 10 degrees positive.
  • 20" Aluminum bandwheels with crowned rubber tires.
  • Upper wheel adjustment 3"
  • Operator controls mounted on column.
  • One set of high speed, insert type guide blocks for bands 1/8" to 1/2"
  • One set of steel guide inserts for bands 1/4", 3/8", 1/2"
  • Band wheel brush
  • Variable frequency band drive.
  • Work light
  • Manual band tension with indicator.
  • Post elevating hand wheel.
  • Chip box
  • Chip blower (plant air required)
  • Saw blade guards.
  • Band door interlocks.
  • Operation and parts manuals on USB stick.
  • Recommended job selector
  • One (1) complimentary DoALL Bi Metal saw blade.
  • Insert setting gages with wrench and trunnion wrench

Details:

  • Column Mounted Controls-Column mounted controls give the operator easy access to band start and blade speed insuring their hands are away from the blade at band start.
  • Variable Frequency Band Drive-Band drive is comprised of a electric variable frequency drive controlled motor transferring power thru our time honored, gear driven, 2 speed transmission giving maximum torque to the tooth tips of the sawblade reducing band stall and tooth strippage.
  • Post Elevating Handwheel-Easy to operate post elevating handwheel allows the operator to keep the upper saw guide block as close to the top of the material being cut without getting their hands close to the blade during adjustment. Proper positioning minimizes the possibility of band deflection increasing band life and safety.
  • Bandwheels-Cast aluminum, crowned bandwheels, are supplied with rubber tires to minimize wheel wear and insure proper band tracking. The tires allow for minimum damage to the set of your saw band.
  • Manual Band Tension-Proper blade tension is manually set to a factory installed indicator which covers all widths of saw bands. This indicator will prevent the possibility of over/under tightening of the sawband for maximum cutting rates and extended band life.
  • Wheel Brush-A strategically mounted replaceable nylon wheel brush cleans the surface of the lower wheel minimizing damage to the lower wheel tire by reducing any chip buildup which may cause improper blade tracking.
  • Saw Guide-Machine is equipped with one set of DoALL invented chevron type saw guide blocks and inserts which will handle 1/8-1/2” sawbands. These will allow proper support to the side and back of the band minimizing deflection due to overfeed conditions.
  • Safety Systems-A unique transmission lock out system prevents shifting between high and low speed while the band is running. Preventing gear stripping and shiftfork damage. Band door interlocks prevents the starting of the saw band while the doors are open. They will also stop the band drive if the doors open during operation which protects the operator from being exposed to a moving band.
  • 10 year manufacturer’s warranty available (DoALL Cut Above Warranty).

Specs:

Saw Blade:

  • Band Width Capacities: 1/8" to 1"
  • Blade Length: 154"

Band Drive:

  • Motor HP-3 Hp
  • Band Speed- Low range 30-320 fpm
  • Band Speed- High range 550-5500 fpm

Band Tension:

  • Manual

Coolant System:

  • Flood-No
  • Mist Lubricator-Optional

Floor Space Dimensions:

  • W x L X H -56" x 44" x 80"
  • Material Pass Height -39"
  • Machine Weight- 1,250 lbs.

Electrical:

  • Voltage Requirement- 208V, 230V or 460V-60Hz-3ph
  • Wye configuration (Must Specify at Order Placement)

Total Amp Draw:

  • (FLA) 10.7(208) 10.7(230) 5.3(460)Amps





Optional Accessories:

  • 12" Travel glide table with (2) point safety buttons on the handles for blade start
  • 18" Travel glide table with (2) point safety buttons on the handles for blade start
  • Work holding vise to fit table "T" slots (Must use option A , B, or D)
  • Extended traverse work table: 1100 lb. capacity, four (4) 2" T-Slots, 34 x 42" table area, reduces work height by approximately 4"
  • DBW-15 welder with grinder, column mounted, for 240 volts and below
  • DBW-15 welder with grinder, column mounted, for 460 volt
  • Extended work height 6 inch increments - Call for quote
  • Work holding jaw with handles
  • Band mist lubricator-80 psi plant air required
  • Standard rip fence that attaches to 26 x 26" table
  • No. 2 standard cut-off and mitering attachment for 26 x 26" table
  • Disk cutting attachment - Capacity 2-1/2 - 30" diameter
  • Magnetic wand chip remover
  • High-speed guide blocks for bands 1/8" to 1/2" (1.5 - 13 mm), speeds to 6,000 fpm (1,830 m/min) less inserts (per pair)
  • Heavy-duty (high-speed) saw guide blocks for bands 1/8" to 1/2" (1.5 - 13 mm), speeds to 6,000 fpm (1,830 m/min) less inserts (per pair)
  • Heavy-duty (high-speed) saw guide blocks for bands 5/8" to 3/4" (16 - 19mm), speeds to 6,000 fpm (1,830 m/min) less inserts (per pair)
  • Heavy-duty (high-speed) saw guide blocks for 1" (27 mm) band, speeds 6,000 fpm (1,830 m/min) less inserts (per pair)
  • Heavy-duty (high-speed) saw guide blocks with carbide-faced backup for bands 1/8" to 1/2" (1.5 - 13 mm), speeds to 6,000 fpm (1,830 m/min) less inserts (per pair)
  • Heavy-duty (high-speed) saw guide blocks with carbide-faced backup bearings for 5/8" and 3/4" (16 and 19 mm) bands, speeds to 6,000 fpm (1,830 m/min) less inserts (per pair)
  • Heavy-duty (high-speed) saw guide blocks with carbide-faced backup bearings for 1" (27 mm) bands only, speeds to 6,000 fpm (1,830 m/min) less inserts (per pair)

 Additional set of hardened tool steel reversible saw guide inserts (set of 4) for any single band width:

  • 1/8" (3 mm)
  • 3/16" (5 mm)
  • 1/4" (6 mm)
  • 3/8" (10 mm)
  • 1/2" (13 mm)
  • 5/8" (16 mm)
  • 3/4" (19mm)
  • 1" (27 mm)

Optional tungsten-carbide, single-faced saw guide inserts (set of 4) for any single band width:

  • 1/4" (6 mm)
  • 3/8" (10 mm)
  • 1/2" (13 mm)
  • 5/8" (16 mm)
  • 3/4" (19 mm)
  • 1" (27 mm)
  •

II. Type I high-speed roller guide blocks, less rollers (per pair)

  • Set of Type II rollers for band saw width:
    • 1/4" (6 mm)
    • 3/8" (9 mm)
    • 1/2" (13 mm)
  • Type II high-speed roller saw guide blocks, less rollers (per pair) reduces work height 1" (27 mm) and restricts table tilt to 27°
  • Set of Type II rollers for band saw width:
    • 1/4" (6 mm)
    • 3/8" (9 mm)
    • 1/2" (13 mm)
    • 5/8" (16 mm)
    • 3/4" (19 mm)
    • 1" (27 mm)
  • Additional USB stick of manuals
  • A Nationally Recognized Testing Laboratory (NRTL) is an independent third-part laboratory recognized by the United States Occupational Safety and Health Administration (OSHA) to test and certify products to applicable product safety standards
  • Five (5) hours installation and operator training
  • DoALL Cut Above 10 Year Warranty Annual Investment
