Hercules™

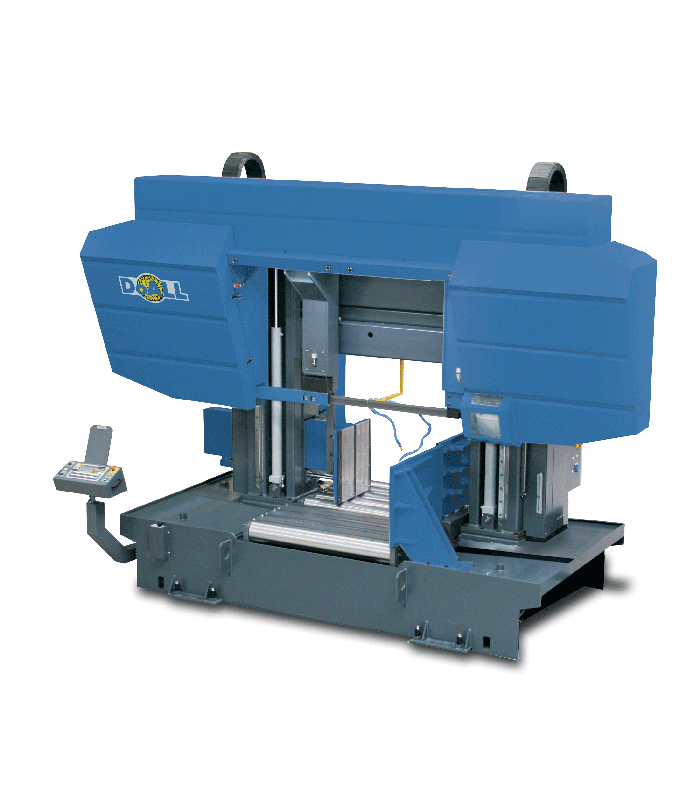

DC-1400CNC - Dual Column Table Band Saw

Machine Capacity: 47 x 55″ (1200 x 1400mm) | Round (Tube or Solid): 47″ (1200mm)
Production Level: High

The DC-1400CNC Hercules™ high production, horizontal CNC band saws from DoALL are highly efficient, automatic, hydraulically controlled machines with multiple material feeds. Designed for vertical cuts, the DC-1400CNC is ideal for serial production in industrial settings. Thanks to the robust construction of the DC-1400CNC, it is possible to cut a wide range of full and profile materials including stainless and tool steel. In addition, the "box" or enclosed design provides very safe operation. A large variety of optional accessories are available to customize the machine for specific sawing requirements.

SHOP DOALL ONLINE
SKU DC-1400CNC
Share:

Standard Equipment:

  • Siemens saw control
  • Work light
  • Hydraulic band tension
  • Automatic guide arm setting
  • Automatic feed control with programmable feed rates
  • Variable vise pressure control - Set of 2
  • Power-driven, band brush
  • Chain chip conveyor with large pan
  • Automatic retraction of material in cycle for protection of carbide blades
  • Dual acting index vice jaws for crooked stock
  • Retractable stationary machine vice jaw
  • Set up tools
  • Complimentary DoALL cutting fluids package
  • One DoALL bi-metal saw blade
  • Instruction and parts manuals on CD or USB data stick
  • Cutting Capacity Round (Tube or Solid): 47.25″ (1200mm)
  • Cutting Capacity Rectangle: 47.25 x 55.12″ (1200x1400mm)
  • Maximum BNesting Capacity: 47.25 x 31.5″ (1200x800mm)
  • Auto Index Stroke Length: 0.4-39.4" (10-1000mm)
  • Band Saw Blade Width: 3.15 x 0.063″ (80x1.6mm)
  • Maximum Blade Length: 458.7″ (11650mm)
  • Band Speed: 50-262 fpm (15-80mpm)
  • Band Drive: 15 hp (11.1kW)
  • Hydraulic Pump: 5.4 hp (4kW)
  • Coolant Pump: 0.2 hp (0.155kW)
  • Material Pass Line Height: 18" (460mm)
  • Machine Weight: 55116 lbs (25000kg)
  • Dimensions W x L x H: 205 x 93 x 113" (5200x2700x2850mm)

Optional Accessories:

  • Front and rear vise nesting - Set of 2
  • Laser edge finder - eliminates trim cut
  • Dynamic adjustment of feed rate to ensure cut squareness
  • Mist-style saw band lubrication
  • Laser line generator
  • Large chip pan with drain
  • Input or output roller conveyor with drip pan - 4409lbs/3.28' (2000kg/m), 31.5x39.3″ or 31.5x78.7″ (800x1000 or 800x2000mm)
  • Single fixed or movable side vertical guide roller - 31.5″ (800mm)
  • Hydraulic shift of vertical guide roller
  • Additional conveyor rollers
  • Filler plates - 39.3 or 78.7″ (1000 or 2000mm)
  • Heavy-duty input or output roller table - 15432lbs/3.28' (7000kg/m), 31.5x78.7″ (800x2000mm)
  • Wear parts service kit

Please note that some accessories require extra lead time due to factory installation.
