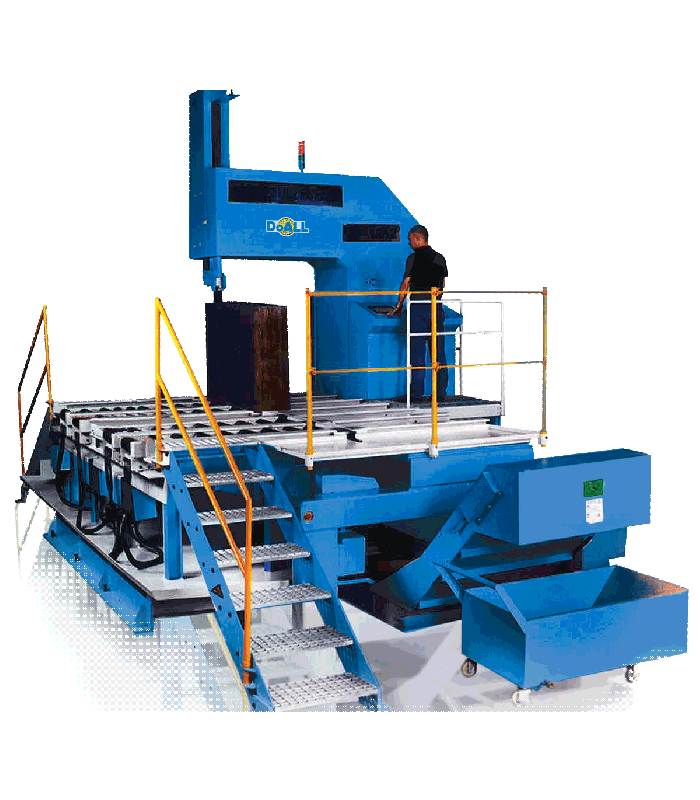

4824-VPL Vertical Plate Saw

Machine Capacity: 48 x 24" (1200x600mm)
Production Level: Block and Plate

DoALL offers vertical plate saws in 3 capacities, all are designed to efficiently and quietly cut large solid plates or blocks of material. The smallest plate saw in the DoALL vertical plate saw family offers capacity up to 48" x 24" (1200x600mm). It runs on a 10 hp (7.6kW) blade drive motor. With features like hydraulic blades guides, chip conveyor and hydraulic lift table with roller alignment system the DoALL 4824-VPL makes quick work of cutting very heavy material. All machines can be run with 2 blade sizes – either 2" (54mm) or 2-5/8" (67mm) blade options and have up to 118" (3000mm) feed length. All machines include a 1-year parts and service warranty.

↓ Download ↓ DoALL 4824-VPL Brochure

SKU 4824-VPL

Standard Equipment

  • PLC control for all electric and hydraulic functions
  • Easy-to-use touch screen interface
  • Hydraulic lift roller table
  • Blade deviation monitor
  • Coolant monitor
  • Automatic, heavy-duty chip conveyor
  • Power-driven band blade brush
  • Emergency shut-off buttons
  • Tool kit
  • Complimentary DoALL cutting fluids package
  • One DoALL saw blade
  • Instructions and parts manual on CD or USB data stick
  • Cutting Capacity Rectangle: 48 x 24" (1200x600mm)
  • Blade Drive Motor: 10 hp (7.6kW)
  • Hydraulic Pump Motor: 3 hp (2.23 kW)
  • Coolant Pump Motor: 1/2 hp (0.37kW)
  • Blade Speed: 40-279 fpm (12-85mpm)
  • Blade Size: 2 x 0.063" (54x1.6mm)
  • Blade Length: 288" (7320mm)
  • Work Height: 51.2" (1300mm)
  • Feed Length: 118" (3000mm)
  • Floor Space Required: 161 x 252 x 154" (4100x6400x3900mm)


  • Optional laser line generator
  • Blade cleaning function
  • Hydraulic pressure detection
  • Out of square detection
