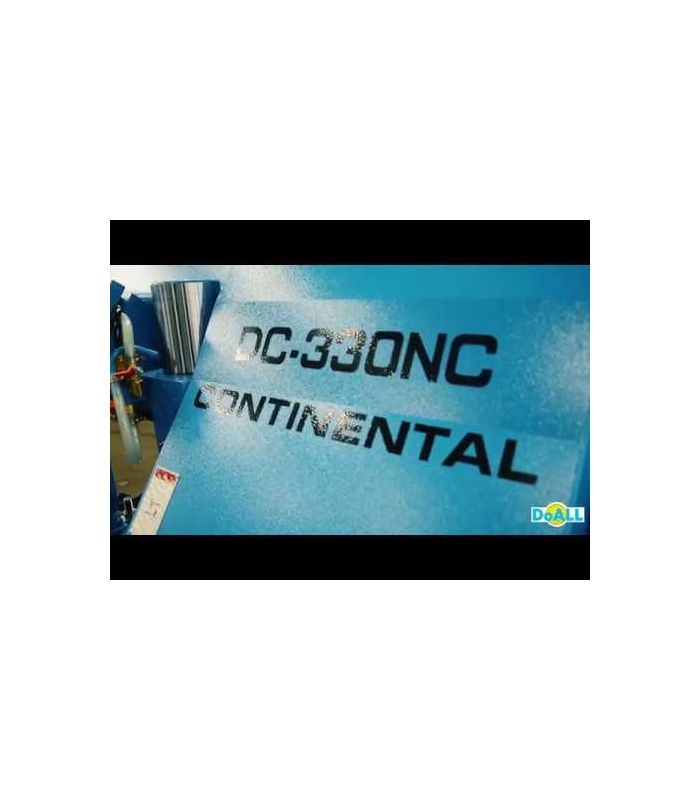

DC-330NC Production Band Saw

Machine Capacity: w 15.75" x h 13" (400mm x 330mm)
Round Capacity: 13" (330mm)
Production Level: High

Standard Features: Automatic Operation with Touchscreen Digital Controls, Indexing Vice Controls and 5 HP Band Drive Motor

The DC-330NC Continental Series™ of high production, horizontal band saws by DoALL are designed for cutting a wide range of metals on a production basis. They offer automatic operation, numerical control and feature solid heavy-duty construction. This provides more rigidity and reduces vibration for higher cutting rates, exceptional accuracy, superior surface finish and increased blade life.

SHOP DOALL ONLINE
SKU DC-330NC
Share:

Standard equipment included with your new DoALL DC-330NC production band saw:

  • Programmable Logic Controller for all machine functions
  • Feed rate and feed force saw head control
  • Infinite band speed controlled variable frequency drive
  • Hydraulic retractable shuttle vice material indexer on chrome rails
  • Rapid and creep speed index vice control
  • Multi-step full stroke cylinder with a split front vice clamping fore and aft of the cut
  • Variable vice pressure control
  • Vertical hydraulic cylinders with hold down fixtures
  • Spring loaded, zero clearance, coolant through, carbide faced saw guide inserts with lead in rollers
  • Adjustable power driven band cleaning brushes with coolant flush line attached
  • Halogen work light
  • Flushing hose for machine wash down and auxiliary coolant nozzles
  • Hydraulic band tension
  • Hydraulic adjustable speed auger design chip conveyor
  • Saw band break/stall motion detector shut off switch
  • Band door interlocks
  • Operation and parts manuals on USB stick
  • One 6.5 ft. (2M) idler input conveyor
  • Maintenance tool kit
  • Complimentary DoALL Cutting Fluids package
  • One (1) complimentary DoALL Bi Metal saw blade

Machine Details & Specs:

Touch Screen Control
Easy operator input including - 20 job storage function. Control is multi-lingual for today's workforce. The control panel will display error message when an incorrect entry is made. Easy switching between imperial or metric units.

High Efficiency Transmission
High efficiency worm gear box built to decrease wear and transmit full torque to the saw blade. Double wide “V” belt to avoid slipping, transmitting full motor power to the transmission.

Hydraulic Chip Conveyor
Adjustable speed auger style conveyor allows for coolant drain from chips before extraction.

Coolant Thru Carbide Faced Saw Guide Inserts
Supplies coolant to the blade evenly before and after the cut creating straighter cuts and allowing longer blade life due to coolant being supplied at the tooth tip and removal of chips

Efficiently Designed Hydraulic System
Engineered low pressure system allows for smoother and quieter operation which aids in longer component life and easy accessibility for maintenance.

Band Wheels
35 Degree lay back head design minimizes band twist, reducing band fatigue and also allows a smaller foot print. Flange cast steel wheels insure band tracking to prevent tooth set lost.

Blade Shock Proof Device
Anti-vibration device decreases vibration when entering the cut creating quieter cutting and increasing blade life.

Multi-step Full Stroke Vises with Split Front Vise and Variable Vise Pressure
Shorter hydraulic cylinders reduce the overall footprint combining the advantage of rack and full stroke. Split front vice clamps on both sides of the blade reducing vibration and remnant length. Variable Vise Pressure will prevent distortion in thin wall tubing and extrusions.

Hydraulic Blade Tension
Automatically eliminating possible error of over/under tightening the band for maximum cutting rates and band life.

Back-up Bearing/Inserts
Supports the back of the saw band reducing vibration while cutting and increasing blade life.

Retractable Shuttle Type Index Vise
Both jaws retract when vise is opened to accommodate the movement of crooked stock increasing accuracy and repeatability.

Magnetic Scale for Indexer
The scale which creates indexing accuracy is protected from dirt and oil build up insuring its long life.

Nesting Fixtures
Plug-n-play vertical hold-down clamp assemblies allows operator to perform multiple piece cutting to increasing productivity.

Warranty
One year parts and service subject to the terms and conditions. Limited Lifetime Warranty available.  See your DoALL representative for further details.

Machine specs for the DC-330NC:

  • Saw Blade
    • Width x Length - 1.25" x 167"

  • Band Drive:
    • Motor HP - 5 HP
    • Band Speed - 52-430 fpm
    • Band Tension – Hydraulic

  • Hydraulic System:
    • Motor HP - 1 HP
    • Reservoir Size - 16 Gallon

  • Coolant System:
    • Flood coolant
    • Motor HP - 1/6 HP
    • Reservoir Size - 24 Gallon
  • Indexer:
    • Length per Stroke - 19.68"
    • Maximum Index Strokes Length - 177"
    • Remnant Length - 6.5" (non-bundle)

  • Floor Space Dimensions:
    • W x L X H - 89" x 87" x 56"
    • Material Pass Height - 27.5"
    • Machine Weight - 4410 lbs.

  • Electrical
    • Voltage Requirement - 230V-60Hz-3ph, Wye configuration
    • Total Amp Draw (FLA) - 22 Amps

Optional Accessories:

  • 10 ft. idler conveyor
  • 5 ft. idler conveyor with filler plates
  • Out of square detection
  • Additional USB stick of manuals
  • Laser line
  • A Nationally Recognized Testing Laboratory (NRTL) is an independent third-part laboratory recognized by the United States Occupational Safety and Health Administration (OSHA) to test and certify products to applicable product safety standards.
  • CSA Certification
  • DoALL Cut Above Lifetime Warranty
